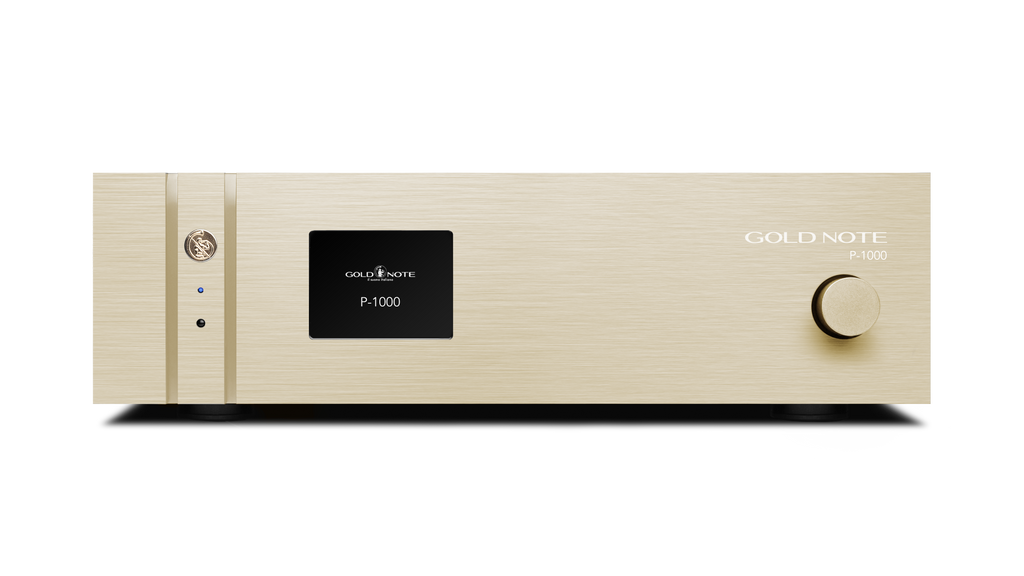

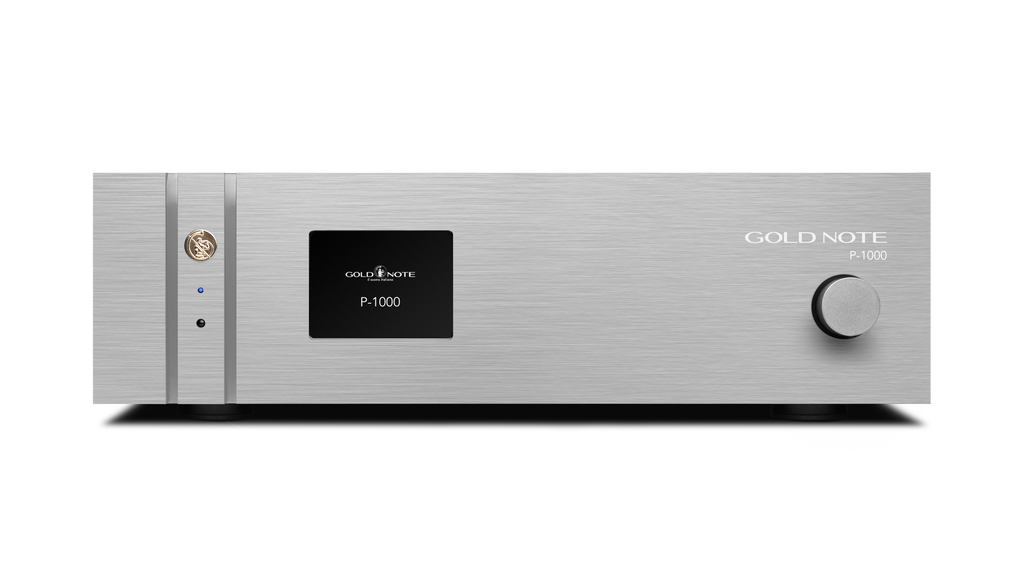

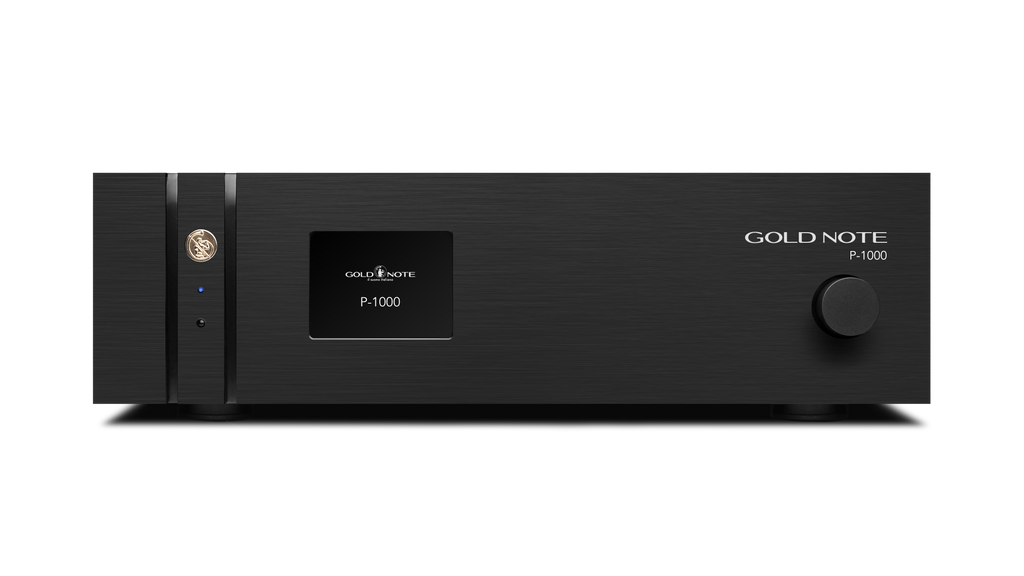

Designed for high end audio systems, P-1000 is an innovative Class-A line preamplifier powered by a new proprietary Six Gain Stage design and with Relays & Optical ALPS Encoder volume control for real music lovers.
Completing the 1000 line of electronics, P-1000 is powered by a Triple Linear Transformer power supply and features 10 independent stereo inputs: 5 fully balanced XLR and 5 RCA + 1 optional digital input available on demand.
Dimensions: 430mm L x 130mm H x 375mm D
Total weight: 15 Kg
Frequency response: 2Hz-200kHz @ +/-3dB
THD – Total Harmonic Distortion: <0.001% @ 1kHz
Gain: +20dB – 10V
Signal to Noise ratio: -120dB
Channel Separation: >118dB
Volume: 0.5dB steps
Absolute Phase: 0°/180°
Channel Left/Right Swap: Selectable
Overboost: adjustable 3 position (by-passable)
Main supply: 100/115/230V, 50/60Hz, depending on market destination and not convertible
Power supply: Dual Mono Ultra Linear triple transformer (one dedicated transformer for the system functions)
Power consumption: 30W max
Output Level: 16Vrms on XLR & 8Vrms on RCA max.
Output Impedance: <10Ω

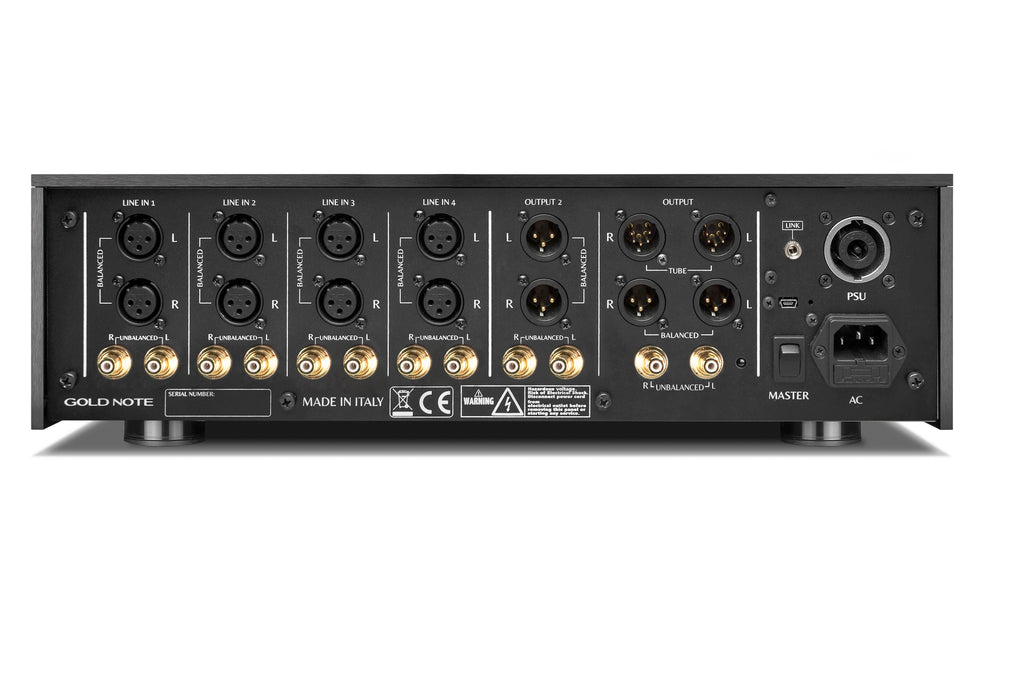

Analogue Input: 5 stereo XLR balanced & 5 Stereo RCA unbalanced
Digital Input (optional): TOS or Coax 24/192kHzz
Input Level: 10Vrms on RCA
Input Impedance: 100kΩ
TUBE-1012: external 12 tubes Class-A Output Stage
TUBE-1006: external 6 tubes Class-A Output Stage
PSU-1000: external Inductive Super Power Supply
