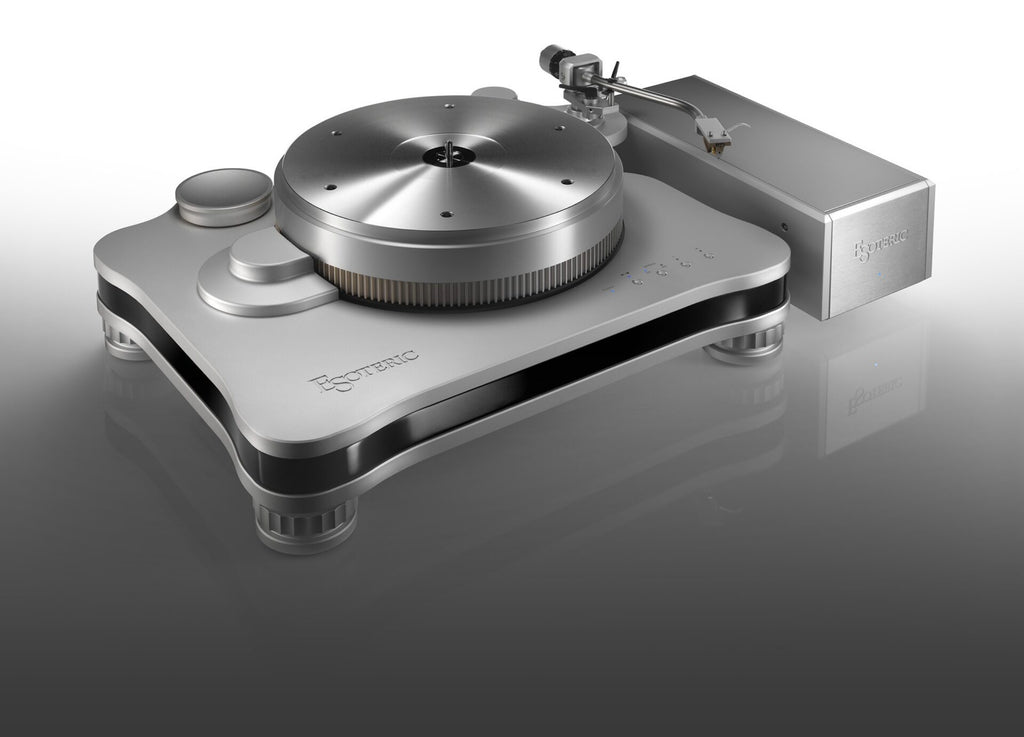

Esoteric T-01 Magnedrive skivspelare

Går få utan tonarm för 548,000 kr

Key Features

• “Esoteric MagneDrive System”: Revolutionary, patented (JP6501130) contact-free drive system.
• High Torque: Provides superior pitch stability and dynamic bass performance.
• Magne-Float Platter Technology: Reduces the platter’s effective mass from 13kg to approximately 4kg, minimizing spindle bearing friction.
• MagneDrive Motor Integrated Chassis Design: Enables easier installation and improved usability.
• Silent Motor Operation: Achieved through the “Vibration Absorber Case” construction.
• High-End Separate-Units Design: Consisting of main unit and compact power supply unit for enhanced operational efficiency and sound isolation.
• A High-Quality “Master Sound Discrete Clock” Motor Driver: Ensures exceptionally accurate platter rotation.
• Clock Sync Compatibility: Supports 10MHz clock sync with the G-01XD/G-05 master clock for seamless integration.
• Inverted Bearing System: Ensures smooth and stable platter rotation.
• Triple-Layered Chassis: Combining aluminum and wood to effectively control vibration, with a mid-chassis finished in luxurious high-gloss piano lacquer.
• Specialized Isolation Feet: with a fully integrated design (spike + spike pad + damper), specialized for maximum vibration suppression and anti-feedback performance.
• Speed Control Flexibility: Two-speed operation (33⅓/45 rpm) with adjustments in 0.1% increments for ultimate accuracy.
• Tonearm Options: Available with the TA-9S static-balance tonearm or as a standalone unit. Supports up to two tonearms with optional arm-board configurations.

The Esoteric MagneDrive System (Patent: JP6501130) is a non-contact, magnetically induced turntable drive system.
In order to achieve our goal of reproducing master-quality sound from a vinyl playback system, Esoteric devoted more than five years from the start of the project to the patent acquisition and commercialization of the MagneDrive system.

A “Magnetic Driver” is mounted on the top of the drive motor. The side of the Magnetic Driver is a dome-shaped magnet with alternating S and N poles. The platter is made of non-magnetic aluminum, but a soft iron “Induction Wheel” surrounds the lower part of the platter side, positioned in close proximity to the Magnetic Driver mounted on the motor assembly. As the Magnetic Driver rotates, the platter rotates synchronously with the induced magnetic force applied to the Induction Wheel. Because this induction mechanism operates without direct physical contact, the platter remains isolated from motor-borne vibration and rumble.

Extremely Quiet Rotation
For vinyl record playback, which picks up vibrations from record grooves on the order of microns and converts them into audio signals, the elimination of vibrations generated by motors is essential to achieving true master-quality sound reproduction.

The Esoteric MagneDrive System revolutionizes this aspect by employing a noncontact power transmission mechanism between the motor and the platter. This innovative design eliminates motor-generated vibrations entirely, allowing for an ultra-silent, “rumble-free” rotation and delivering crystal-clear audio that preserves the purity of every note.

Precision-Engineered Platter with Magne-Float System
The T-01 features a meticulously crafted 13kg high-mass platter, precision-machined from a solid aluminum block. This heavy-duty design is enhanced by the innovative “Magne-Float System”, which reduces the effective bearing load to approximately 5.5kg. This breakthrough achieves an ideal balance of high rotational inertia and minimal friction, resulting in remarkably smooth, stable, and whisper-quiet rotation. To further enhance stability, the platter incorporates inverted bearings that position the fulcrum closer to the vinyl surface. This design ensures unparalleled rotational stability, optimizing playback precision.
The platter’s surface is a masterpiece in itself. Hand-finished by skilled craftsmen, each platter undergoes a meticulous polishing process to achieve a mirror-smooth finish and a stunning spin pattern reminiscent of fine artisanal craftwork. Combining engineering excellence with aesthetic sophistication, the platter exemplifies Esoteric’s commitment to artistry and performance.

Powerful, Dynamic Sound
High-torque turntable systems are generally valued for their superior pitch stability and their ability to reproduce music with powerful dynamics and authoritative, impactful “punchy-bass” performance.
The Esoteric MagneDrive system has a powerful drive torque, and can accurately reproduce the dynamics of music while eliminating the rumble typically associated with conventional high-torque drive designs.

Exceptional Rotational Accuracy
Esoteric MagneDrive System establishes a new benchmark in rotational precision. By leveraging a magnetic driver and platter working in perfect synchronization, this mechanism eliminates traditional speed deviations caused by mechanical imperfections such as belt stretch or pulley inaccuracies. The result is exceptionally stable, precise, and consistent platter rotation.
T-01’s magnetic synchronization adheres strictly to the fundamental principles of rotational transmission physics, maintaining constant and reliable speed under all conditions. This innovative design delivers breathtaking audio performance, capturing every nuance of your vinyl records with precision and clarity.

The T-01 is not just a turntable, it is a statement of engineering excellence, precision craftsmanship, and uncompromising musical authenticity.

A Motor Unit Incorporating the Best of Esoteric Technology
The T-01 features a chassis-integrated MagneDrive System motor unit, eliminating the need for the time-consuming setup process using specialized jigs required by the Grandioso T1 and making installation much easier.
To maximize the quiet operation of the Esoteric MagneDrive System, the motor assembly incorporates a dedicated ‘Vibration Absorber Case’ designed to minimize the transmission of unwanted vibration to the chassis, preserving the purity of vinyl playback.

Motor Unit Featuring a “Vibration Absorber Case”
The motor itself is suspended from a ring-shaped support bracket via anti-vibration rubber washers preventing motor-generated vibrations from being transmitted to the surrounding structure.
The bracket is secured to a heavy-duty, precision-machined, dual-layer brass base (forming the main body of the ‘Vibration Absorber Case’) where residual vibrations are effectively absorbed and controlled. The motor assembly, housed within this anti-vibration case, rests on an aluminum base under its own weight. The strategic combination of dissimilar materials helps disperse and suppress vibration modes across a wider frequency range. The aluminum base is designed with special laser-cut slits that disperse vibration modes into finer frequencies.

Master Sound Discrete Clock Circuit
The motor driver circuit incorporates a high-precision 10 MHz master clock to accurately generate the drive waveform that powers the motor. The clock circuit utilizes our proprietary Master Sound Discrete Clock technology to ensure high precision.

10MHz Master Clock Sync Capability
The motor unit of the T-01 is engineered for the highest level of rotational precision, featuring an external 10MHz clock input. By connecting the external Master Clock Generator (sold separately), you can elevate sound quality even further. This configuration supplies the motor driver circuit with an ultra-precise reference clock signal, enabling exceptionally accurate waveform generation, superior rotational stability, and an even higher level of musical performance.

Maintenance-Free Longevity
The unique Esoteric MagneDrive System offers significant advantages over traditional turntable mechanisms. By eliminating the need for a drive belt, it removes the hassle of periodic replacements and significantly reduces wear on moving parts. This innovative design ensures minimal maintenance while preserving long-lasting, high-quality sound performance.

With the Esoteric MagneDrive System, you can enjoy exceptional audio clarity and reliability for years to come, making it a truly worry-free investment in premium sound

Japanese high-end audio manufacturer, Esoteric, has launched a new turntable, the T-01, which includes a contactless magnetic drive system for “uncompromising precision, energy, and realism”.

The T-01 turntable costs £41,999 / $50,000 and includes features from the company’s flagship record player, the Grandioso T1, such as a triple-layer aluminium and MDF cabinet construction and 10MHz external clock synchronisation. The turntable’s clock sync is compatible with the G-01XD and G-05 Master Clock, too.

The turntable also features a Magne-Float platter, which uses magnetic repulsion to reduce the effective mass of the platter from 13kg to 4kg, thereby minimising spindle bearing friction.
