| Network section |
|
| Supported file formats |
|
| PCM Lossless |
FLAC, ALAC, WAV, AIFF, MQA |
| DSD Lossless |
DSF, DSDIFF (DFF) , DoP |
| Compressed audio |
MP3, AAC |

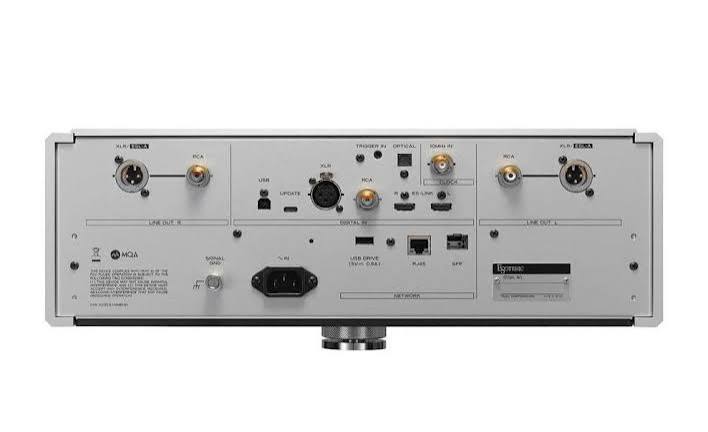

| RJ45 port |
1 (1000BASE-T) |
| SFP port |
1 (1000BASE-T/-LX (single mode), 1000BASE-SX (multi mode) ) |
| USB DRIVE port |
1 (TYPE-A) USB2.0 or higher recommended
|
| Supported file systems |
FAT32, exFAT, NTFS, Single partation |
| Maximum current supply |
0.5A |
| Supported sampling frequencies |
|
| PCM |
44.1 to 768kHz, 16bit / 24bit / 32bit |
| DSD |
2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz |
| Digital audio inputs |
|
| ES-LINK |
1 (L/R) |
| Input signal formats |
|
| Linear PCM |
44.1 to 768kHz, 48bit (ES-LINK5 format) |
| DSD |
2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (ES-LINK5 format) |
| XLR |
1 |
| Input level |
5.0Vp-p |
| Input impedance |
110Ω |
| Input signal formats |
|
| Linear PCM |
32 to 192kHz, 16bit / 24bit (AES/EBU format) |
| DSD |
2.8MHz (ES-LINK1, ES-LINK2, DoP format) |
| RCA |
1 |
| Input level |
0.5Vp-p |
| Input impedance |
75Ω |
| Input signal formats |
|
| Linear PCM |
32 to 192kHz, 16bit / 24bit (IEC60958 format) |
| DSD |
2.8MHz (DoP format) |
| OPTICAL |
1 |
| Input level |
–24.0 to –14.5 dBm peak |
| Input signal formats |
|
| Linear PCM |
32 to 192kHz, 16bit / 24bit (IEC60958 format) |
| DSD |
2.8MHz (DoP format) |
| USB |
1 (TYPE-B), USB2.0 or higher recommended |
| Input signal formats |
|
| Linear PCM |
44.1 to 384kHz, 16bit / 24bit / 32bit |
| DSD |
2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz |
| Clock input |
|
| BNC |
1 |
| Supported input frequency |
10MHz (±10ppm) |
| Input impedance |
50Ω |
| Input level |
|
| Rectangle wave |
TTL level equivalent |
| Sine wave |
0.5 to 1.0Vrms |
| External control input |
|
| TRIGGER IN |
1 (3.5mm mono mini jack) |
| Input level |
12V, 1mA |
| Analog audio outputs |
|
| XLR/ES-LINK Analog |
1 pair (L/R) |
| Output impedance |
60Ω (XLR) |
| Maximum output level |
5.0Vrms (1kHz, 10kΩ load) |
| RCA |
1 pair (L/R) |
| Output impedance |
20Ω |
| Maximum output level |
2.5Vrms (1kHz, 10kΩ load) |
| Audio performance |
DSD 2.8MHz 0dB, DSDF=F2, XLR output |
| Frequency responce |
5Hz to 30kHz (–3dB) |
| S/N ratio |
113dB (A-weight) |
| Distortion |
0.001％ (1kHz) |
| General |
|
| Power supply |
|
| Model for Europe |
AC220–230V, 50/60Hz |
| Model for USA/Canada |
AC120V, 60Hz |
| Power consumption |
26W (in standby: 0.3W) |
| External dimensions (W×H×D)
|
445 × 161.5 × 437mm / 17-⅝” × 6-⅜” × 17-¼” (including protrusions) |
| Weight |
25.7kg / 56 ¾ lb |
| Included accessories |
Power cord × 1
Felt pads × 3
Owner’s manual × 1
Warranty card × 1 |
